Charmi Engineering is engaged in manufacturing and exporting Resin Plant and alkyd resin plants for our clients spread worldwide. We Offer Wide Range of alkyd Resign Plant and long oil alkyd resin plant. Alkyd resin Plant mostly used in Paint industries. We Design and manufacture long oil resin plant, medium oil resin plant and short oil resin plant. We Manufacture resin plant from 50 liters to 20 tons, batch on solid base. Alkyd Resin Plant is available in various technical specifications are appreciated worldwide for its unique features such as high durability, corrosion resistance and optimum utility.

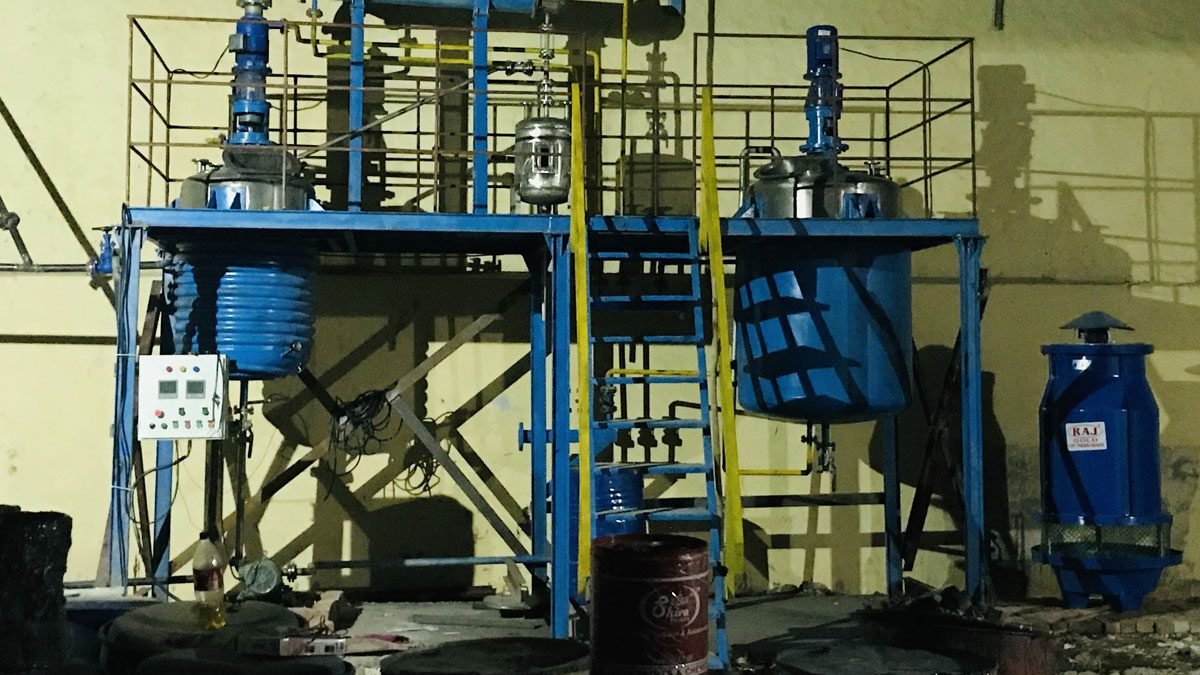

In resin plant we provide Chemical reactor with Limpet coil, packed columns, Shell and Tube Condenser , separator and blender ,if need then we provide internal cooling coil ,in reactor heating temperature range 50 to 250 degree by thermic fluid heater , condenser tube side row material of resin and shell side water for cooling purpose, column inside ss strap and ceramic for material back to reactor ,column outside water circulation line , separator capacity depend on reactor volume ,when heating & mixing is completed then transfer material in blender for temperature cool down purpose , when material temperature around 30 to 50 degree material move in packing drum

SPECIFICATION

Application Industry

• Pharmaceutical industry
• Chemical industry
• Food and beverages industry
• Petro-chemical industry
• Resins industry
• Polymers industry
• Coatings industry
• Adhesives industry
• Agricultural industry
• General chemicals industry
• Plastics industry
• Rubber industry
• Herbal Extractor
